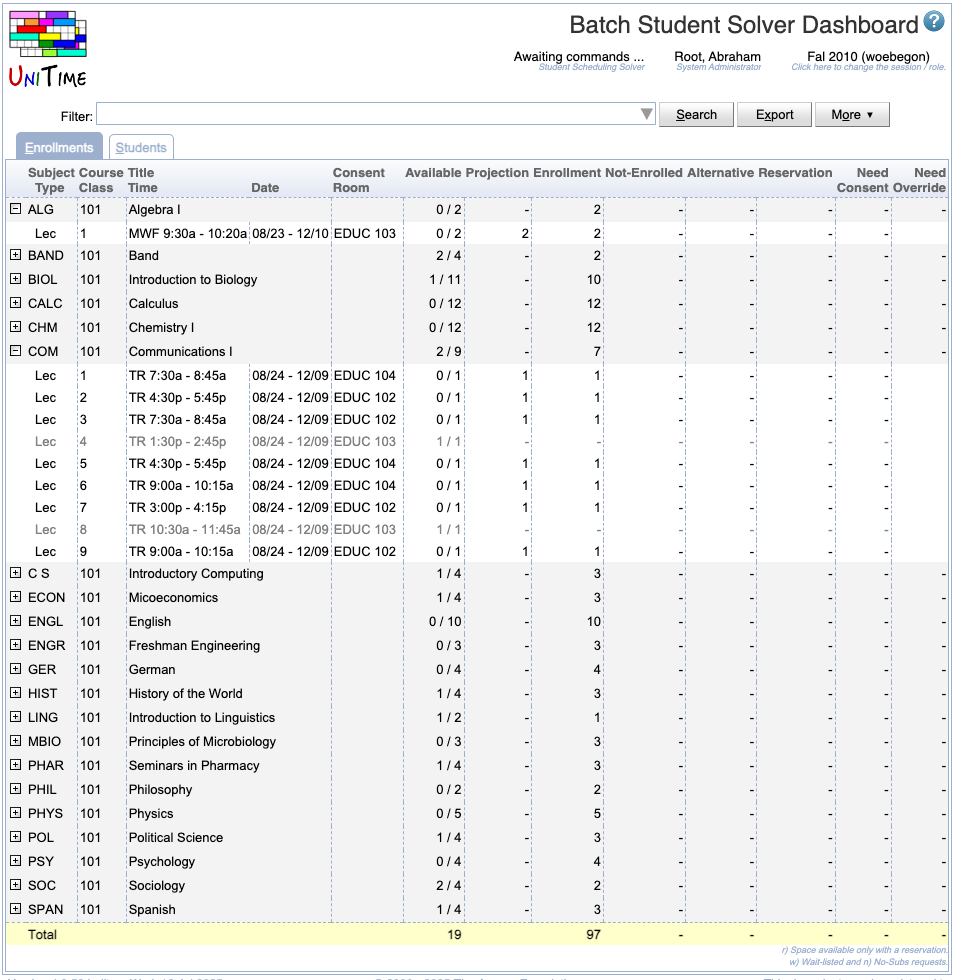

# Batch Student Solver Dashboard

## Screen Description

The Batch Student Solver Dashboard screen displays information about student requests/enrollments that have been loaded into the batch sectioning solver. There are numerous filtering capabilities on this page.

## Filter

The filter at the top of the Online Student Scheduling Dashboard page controls the search criteria used to display data on the page. When the user accesses the Online Student Scheduling Dashboard page for the first time the filter will be blank. Once the user has entered search criteria in the filter and performed a search the page will remember the last search performed by the user and automatically populate the filter with that search criteria the next time the user accesses the page. See Scheduling Dashboard Filter for more details.

Note: In addition to any search criteria entered into the Filter, the data displayed in the Scheduling Dashboard is also filtered by the access to the data granted by a user’s role.

## Details

The page shows up to two tabs - Enrollments with detailed information about courses and classes, Students with enrollment information ordered by students. Keep in mind that the table reflects the restrictions entered in the Filter. See the description for each of them below.

### Enrollments

A column with clickable plus signs that enable unfolding of a course into lines with individual classes

Subject / Type

Subject area on the line with a course

Instructional Type on the line with a class

Course / External Id

Course number on the line with a course

External Id or section number on the line with a class

Title / Time

Course title on the line with a course

Assigned time of a class

Date

Dates during which the class is taught

Consent / Room

Type of required consent for a course (if empty, no consent is required)

Room where a class is taught

Available

Total number of available seats / total number of seats

The column has two numbers separated by a slash (/). The first number is the total number of unused space in the course or class. The second number is the size limit for the course or class. For example: 5 / 25 would mean there are 5 available spaces in a class that holds 25 students.

Projection

Total number of projected students for the course or class

Snapshot Limit

The course / class snapshot limit (a limit taken at a certain time)

Enrollment

Number of students enrolled into the course or class (filtered by filtering criteria)

When the search criteria used in the Filter does not restrict the student population then a single number which is the total number of students enrolled in the course or class is displayed. For example, if there 20 students enrolled in a class then the number 20 would be displayed. When the search criteria used in the Filter restricts the student population for the data displayed in this column, there will be two numbers separated by a slash (/). For example, if 3 of the students in the population retrieved by the search criteria in the Filter are enrolled in the class and in total there are 20 students enrolled in the class, then the number displayed would be 3 / 20.

Not-Enrolled

Number of students who have requested the course or class but are not enrolled in it (filtered by filtering criteria)

When the search criteria used in the Filter does not restrict the student population, then a single number equal to the total number of students who have the course listed in their course request but are not enrolled in the course, is displayed. For example, if there 2 students who requested a course but did not receive it, then the number 2 would be displayed. When the search criteria used in the Filter does restrict the student population for the data displayed in this column, there will be two numbers separated by a slash(/). For example, if 1 of the students in the population retrieved by the search criteria in the Filter requested the course but did not receive it and in total there are 2 students who requested the course but did not receive it, then the number displayed would be 1 / 2.

Alternative

Number of students who have requested the course (as an alternative) or class but are not enrolled in it (filtered by filtering criteria)

When the search criteria used in the Filter does not restrict the student population then a single number which is the total number of students who have the course listed in their course request as an alternative is displayed. For example, if there 5 students who requested a course as an alternative then the number 5 would be displayed. When the search criteria used in the Filter does restrict the student population for the data displayed, this column will have two numbers separated by a slash(/). For example, if 2 of the students in the population retrieved by the search criteria in the Filter requested the course as an alternative and in total there are 5 students who requested the course as an alternative, then the number displayed would be 2 / 5.

Reservation

Number of students enrolled into the course or class via a reservation (filtered by filtering criteria)

When the search criteria used in the Filter does not restrict the student population, a single number equal to the total number of students who have been placed into the course or class as the result of a reservation is displayed. For example, if there were 3 students who were placed into a course as a result of a reservation then the number 3 would be displayed. When the search criteria used in the Filter does restrict the student population for the data displayed the in this column will be two numbers separated by a slash(/). For example, if 1 of the students in the population retrieved by the search criteria in the Filter was placed into a course as a result of a reservation and in total there are 3 students who were placed into a course as a result of a reservation, then the number displayed would be 1 / 3.

Need Consent

Number of students who need consent of instructor to be able to take the course (filtered by filtering criteria)

When the search criteria used in the Filter does not restrict the student population then a single number which is the total number of students who required some form of consent to enroll in the course or class is displayed. For example, if there were 4 students who required some form of consent to enroll in a course then the number 4 would be displayed. When the search criteria used in the Filter does restrict the student population for the data displayed the in this column will be two numbers separated by a slash(/). For example, if 2 of the students in the population retrieved by the search criteria in the Filter required some form of consent to enroll in a course and in total there are 4 students who required some form of consent to enroll in a course, then the number displayed would be 2 / 4.

Need Override

This column is only populated if UniTime is integrated with a system that will inform UniTime of the need for overrides. This label applies to both the course and class level data. When the search criteria used in the Filter does not restrict the student population then a single number which is the total number of students who require an override to enroll in the course or class is displayed. For example, if there were 6 students who require an override to enroll in a course then the number 6 would be displayed. When the search criteria used in the Filter does restrict the student population for the data displayed the in this column will be two numbers separated by a slash(/). For example, if 2 of the students in the population retrieved by the search criteria in the Filter require an override to enroll in a course and in total there are 6 students who require an override to enroll in a course, then the number displayed would be 2 / 6.

Click on any class or course to get to its Enrollments dialog (which shows a list of enrolled students together with some additional information).

The table can be sorted by any table header - just click on it, then on the "Sort by" option that opens.

### Students

Note: some columns need not be displayed in the table if they are not applicable to the current situation

External Id (optional column)

Student's external id (university id)

Student

Name of the student

Area

Academic area (e.g., college of the student)

Clasf

Academic classification (e.g., year/semester of study)

Degr

Student's degree

Major

Student's major

Minor

Student's minor

Accommodation

If a student requires an accommodation that affects their course schedule, then the code for the accommodation is displayed in this column.

This column is only visible if there is at least one student in the data returned by the search criteria in the filter that requires accommodation.

Group

Student group or groups that the student is associated with.

Additional group columns may appear for groups of certain types. For example, if there are student groups of type COHORT, there will be a COHORT column containing cohorts that the student is associated with.

Status

If the student has a student scheduling status that has been set to a value other than the session default, then the value is displayed in this column.

See the description of the Student Scheduling Status Types screen for more details

Enrollment

The number of courses the student is enrolled into.

This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has an enrollment.

Not-Enrolled

The number of courses the student has requested but is not enrolled into. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has at least one course request that the student is not enrolled into.

Reservation

The number of reservations provided to a student to place the student into a particular course or class. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that required a reservation.

Consent

The number of courses the student is enrolled in that required some form of consent for the student to enroll into the course. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that required consent.

Pending Overrides

The number of pending override requests that the student has. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has a pending override.

Enrollment Credit

This column displays the total number of credits in which a student is enrolled. If the student is enrolled into a configuration of a course that is online (DO) or hybrid (B/H) then the total credit of courses labeled online or hybrid will be broken out inside of parentheses. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that is enrolled into a course.

Requested Credit

This column displays the range of credits that may be generated by a student’s course request. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has saved course requests.

Distance Conflicts

This column displays the number of distance conflicts a student has and next to it in parentheses the number of minutes of the longest distance conflict. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has a distance conflict.

Overlap [min]

This column displays the number of minutes of overlapping classes a student has. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has overlapping classes.

Free Time [min]

This column displays the number of minutes that the student is in class during a window of time the student has requested as Free Time. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has a class overlapping their Free Time request.

Instr. Method Preferences

This column displays the number of instructional method preferences a student listed in their course request. If the student is not enrolled in any courses or received all of their instructional method preferences the number of instructional method preferences is displayed. If the student is enrolled in courses and is not enrolled in a class that matches their instructional method preferences, then the number displayed will be the number of instructional method preferences the student had that were met followed by a slash (/) and the number of instructional method preferences the student requested, e.g., 1 / 2. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has an instructional method preference.

Section Preferences

This column displays the number of class section preferences a student listed in their course request. If the student is not enrolled in any courses or received all all of their class section preferences the number of class section preferences is displayed. If the student is enrolled in courses and is not enrolled in a class that matches their class section preferences, then the number displayed will be the number of class section preferences the student had that were met followed by a slash (/) and the number of class section preferences the student requested, e.g., 0 / 1. This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has a class section preference.

Requested

Date of student's requests

Enrolled

Date of student's enrollments

Advisor

This column displays the advisor or advisors that the student has assigned.

This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has an advisor.

Advised Credit

For the students that have been advised, this column displays the credit number provided by the advisor (the Total Priority Credit Hours from the Advisor Course Recommendations page), but the color indication shows how the recommendations are followed.

So, the student can have a similar number of credits requested, but when he/she puts different courses in the color will go from green to orange to red based on the percentage we no longer show.

More details are available on mouse-over and when the student line is clicked.

This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has been advised.

Missing Courses

This column displays the number of courses the student did not place on their Student Course Requests page that the advisor recommended.

Missing critical courses are marked in red (with critical or cr next to the number in superscript), other missing primary courses are listed after the number. There is also a mouse-over that will explain the numbers, together with listing the key changes.

The Missing Courses will sort by the critical numbers first, other missing primary courses second.

This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has been advised.

Not-Enrolled Courses

This column lists the number of courses that the advisor recommended and the student put on the Course Requests form, however, the student is not enrolled in the course (or any of the advisor-provided alternative).

The number of not-enrolled critical courses is highlighted the same way as in the Missing Courses column (in red with cr superscript). The courses are listed on the mouseover.

This column is only visible if there is at least one student in the data returned by the search criteria in the filter that has been advised.

Click on any line from the table to get to a list of Classes for a given student.

The table ends with a line of totals for the number of students, student enrollments, wait-enrolled student requests, reservations, and required consents.

## Operations

Search

Apply the search criteria from the Filter

Export

Export table in CSV format
